Brand Name: | APVO |
Model Number: | RHJ-A300 |
MOQ: | 1 set |
Price: | USD$9800/set |
Packaging Details: | Standard wooden case |
Payment Terms: | T/T |
Capacity
|
Wall scraper mixer
|
Homogenizer
|
Water and oil pot
|
Disperser
|
50L
|
1.1kw, 0-65rpm
|
2.2kw, 0-3600rpm
|
45/30L
|
0.37/0.37kw, 1440rpm
|
100L
|
1.5kw, 0-65rpm
|
4kw, 0-3600rpm
|
90/60L
|
0.55/0.55kw, 1440rpm
|
200L
|
3kw, 0-65rpm
|
5.5kw, 0-3600rpm
|
180/120L
|
0.75/0.75kw, 1440rpm
|
300L
|
4kw, 0-65rpm
|
7.5kw, 0-3600rpm
|
270/180L
|
1.1/1.1kw, 1440rpm
|
500L
|
5.5kw, 0-65rpm
|
11kw, 0-3600rpm
|
450/300L
|
1.5/1.5kw, 1440rpm
|
Advantage

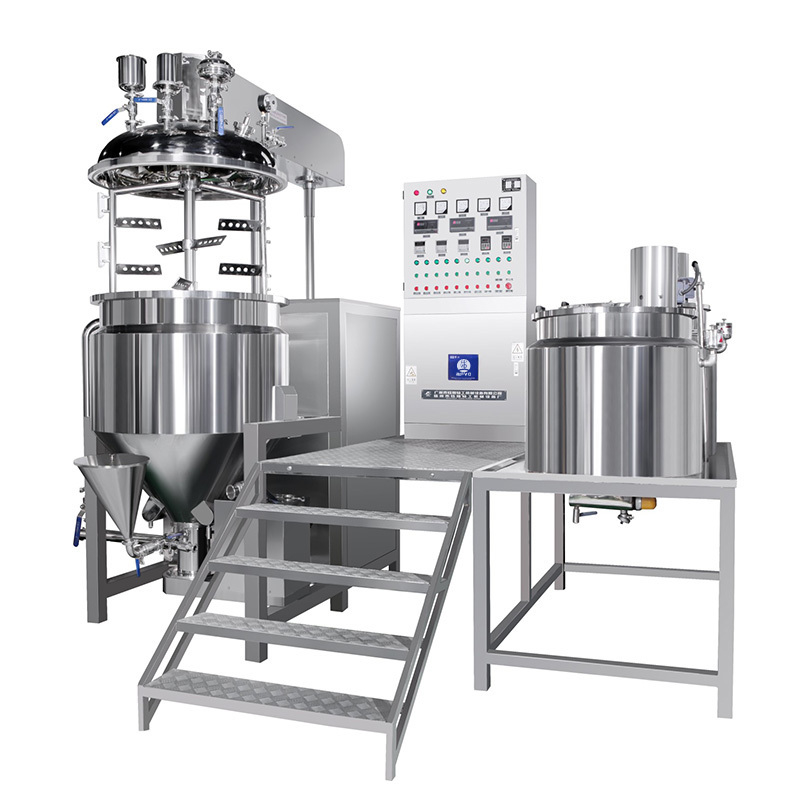

The machine has triple blender, hydraulic lift cover , high-speed homogenizer (speed is 0-3500r/min ,frequency speed regulation). Fast-cutting vortex emulsification blender is used in the homogeneity part , which can scrape in a low speed and automatically blend and snuggle up to the bottom and wall of boiler . The machine draws power material by the way of vacuum in order to prevent the powder flying . The whole working procedure is operated in the condition of vacuum in order to prevent the material coming int being bubble after high- speed blending and reach the request of sanitation and asepsis. CIP cleaning system is equipped in this system . The contact part of vessel and material is made from SUS316L material .Mirror finish of the inside surface is 300EMSH . In products of Germany Siemens Company , the button is produced by Japan Fuji Company , the transducer is the product of Japan Matsushita Electric Industries and the electro-control part is the product of Siemens Company .The machine is made completely according to the GMP request , which is the most advanced and most perfect cream production equipment.
Air Removal: One of the main features that sets vacuum stirred tank reactor apart from regular mixers is their ability to remove air. Air can ruin the texture of your product, making it less smooth and more likely to separate. Nobody wants a bubbly, uneven lotion or an unstable emulsion. Vacuum technology pulls air out of the mixture, which helps create a dense, smooth product without any bubbles. For cosmetics, this means a longer shelf life and a better overall appearance.
Improved Shelf Life: Vacuum functionality also helps prevent oxidation, which is a big win for both food and cosmetics. Oxygen can spoil certain ingredients, reducing their effectiveness or causing them to go bad faster. By reducing oxygen exposure, a vacuum reaction vessel helps keep products fresh and stable over time. This is especially crucial in cosmetics, where oxidation can affect color and effectiveness.
Consistent Product Quality: Vacuum mixing ensures that each batch is made under the same conditions, resulting in consistent quality. Consistency is key in manufacturing, as it builds customer trust and reduces the chances of product rejection.
Model
|
LTRZ-50
|
LTRZ-100
|
LTRZ-200
|
LTRZ-350
|
Total Volume (L)
|
70
|
140
|
260
|
450
|
Feeding Volume kg/batch
|
30-50
|
60-100
|
90-200
|
170-350
|
High speed motor (kw)
|
3
|
4
|
4
|
5.5
|
Rotation Speed of high speed motor
|
3000-10000
|
|||
Rotation Speed of frame type scraper motor
|
20-60
|
|||
Oil tank volume (L)
|
30
|
60
|
100
|
350
|
Water tank volume (L)
|
45
|
85
|
160
|
300
|
1.Warranty time: one year, from the date which the product is qualified commissioning.
Any damage except the wrong operation during warranty period is repaired freely.But the travel and hotel expenses should be count on buyer.
2. Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Training services: our engineers will train your staff to operate it during the period of installation and commissioning,
and they will not leave there until your staff can operate it properly and normally.
4. Maintenance services: any malfunction happened, once you inquiry us, we will reply you within 48 hours except the special reasons.
5. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount
price.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8. The file: the Manual Specification, report of the material which used to the equipment and other documents related to the GMP authentication information will be provided by us.
