Vacuum Homogenizer Machine
>

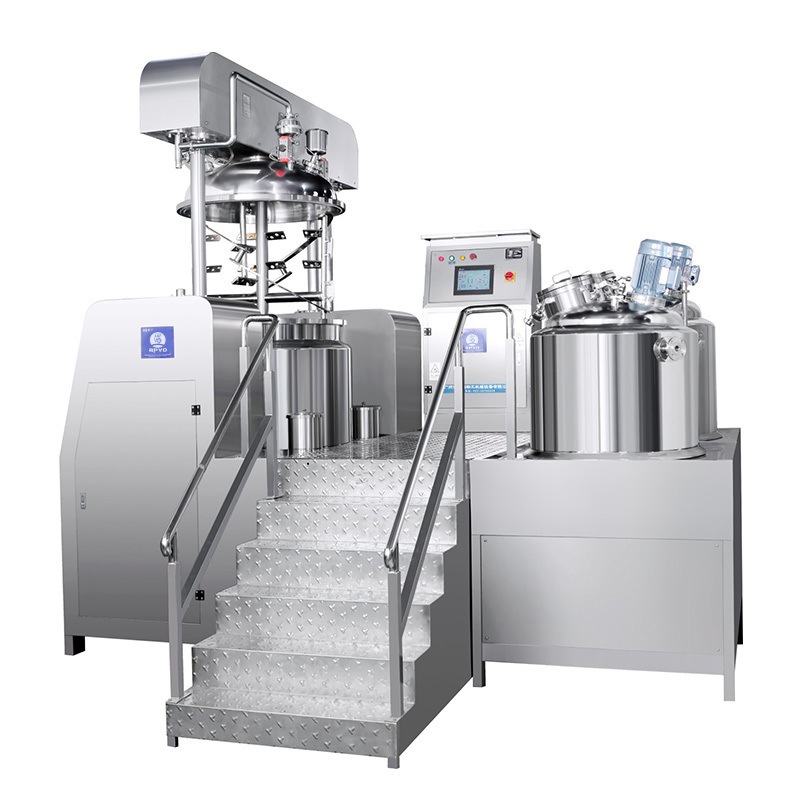

Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line

Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line

Brand Name: APVO
Model Number: RHJ-A300
MOQ: 1 set
Price: USD$9800/set
Packaging Details: Standard wooden case
Payment Terms: T/T
Detail Information
Place of Origin:
Yangzhou, China
Certification:
CE
Function:
Mixing And Emulsion
Material:
Stainless Steel 304 / SUS316L
Video Outgoing-inspection:
Provided
Homogenizing Speed:
0-3000rpm
Application:
Cosmetics, Pharmaceuticals, Food, Chemicals
Capacity:
100L 150L 200L 300L 500L 1000L
Emulaifier System:
Botton Homogenizer
Key Selling Points:
Long Service Life
Stirrer Type:
Forced Stirrer
Feature:
Internal And External Circulation Homogenization
Motor:
Siemens Motor
Warranty:
1 Year
Mixer Type:
Agitator
Mixing Speed:
0-60r/pm
Highlight:

vacuum homogenizer machine for cosmetics

,

cosmetic emulsifying machine production line

,

vacuum emulsifying machine with warranty

Product Description
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line



Features



1. Vacuum defoaming function can make the materials meet the requirement of being aseptic.
2. The main boiler lid adopts the lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler
adopts a tilting discharge.
3. The main tank can be heated and cooled with an electric heating function.
4. Adopts imported electric appliances which can meet international standards.
5. Contacted parts are made of SS316L, the wall scraper is made of PTFE.

Capacity
Wall scraper mixer
Homogenizer
Water and oil pot
Disperser
50L
1.1kw, 0-65rpm
2.2kw, 0-3600rpm
45/30L
0.37/0.37kw, 1440rpm
100L
1.5kw, 0-65rpm
4kw, 0-3600rpm
90/60L
0.55/0.55kw, 1440rpm
200L
3kw, 0-65rpm
5.5kw, 0-3600rpm
180/120L
0.75/0.75kw, 1440rpm
300L
4kw, 0-65rpm
7.5kw, 0-3600rpm
270/180L
1.1/1.1kw, 1440rpm
500L
5.5kw, 0-65rpm
11kw, 0-3600rpm
450/300L
1.5/1.5kw, 1440rpm





Advantage



The machine has triple blender, hydraulic lift cover , high-speed homogenizer (speed is 0-3500r/min ,frequency speed regulation). Fast-cutting vortex emulsification blender is used in the homogeneity part , which can scrape in a low speed and automatically blend and snuggle up to the bottom and wall of boiler . The machine draws power material by the way of vacuum in order to prevent the powder flying . The whole working procedure is operated in the condition of vacuum in order to prevent the material coming int being bubble after high- speed blending and reach the request of sanitation and asepsis. CIP cleaning system is equipped in this system . The contact part of vessel and material is made from SUS316L material .Mirror finish of the inside surface is 300EMSH . In products of Germany Siemens Company , the button is produced by Japan Fuji Company , the transducer is the product of Japan Matsushita Electric Industries and the electro-control part is the product of Siemens Company .The machine is made completely according to the GMP request , which is the most advanced and most perfect cream production equipment.



Working Principle


Air Removal: One of the main features that sets vacuum stirred tank reactor apart from regular mixers is their ability to remove air. Air can ruin the texture of your product, making it less smooth and more likely to separate. Nobody wants a bubbly, uneven lotion or an unstable emulsion. Vacuum technology pulls air out of the mixture, which helps create a dense, smooth product without any bubbles. For cosmetics, this means a longer shelf life and a better overall appearance.

Improved Shelf Life: Vacuum functionality also helps prevent oxidation, which is a big win for both food and cosmetics. Oxygen can spoil certain ingredients, reducing their effectiveness or causing them to go bad faster. By reducing oxygen exposure, a vacuum reaction vessel helps keep products fresh and stable over time. This is especially crucial in cosmetics, where oxidation can affect color and effectiveness.

Consistent Product Quality: Vacuum mixing ensures that each batch is made under the same conditions, resulting in consistent quality. Consistency is key in manufacturing, as it builds customer trust and reduces the chances of product rejection.



Technical Data

Model
LTRZ-50
LTRZ-100
LTRZ-200
LTRZ-350
Total Volume (L)
70
140
260
450
Feeding Volume kg/batch
30-50
60-100
90-200
170-350
High speed motor (kw)
3
4
4
5.5
Rotation Speed of high speed motor
3000-10000
Rotation Speed of frame type scraper motor
20-60
Oil tank volume (L)
30
60
100
350
Water tank volume (L)
45
85
160
300





After-sales Service



1.Warranty time: one year, from the date which the product is qualified commissioning.
Any damage except the wrong operation during warranty period is repaired freely.But the travel and hotel expenses should be count on buyer.
2. Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Training services: our engineers will train your staff to operate it during the period of installation and commissioning,
and they will not leave there until your staff can operate it properly and normally.
4. Maintenance services: any malfunction happened, once you inquiry us, we will reply you within 48 hours except the special reasons.
5. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount
price.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8. The file: the Manual Specification, report of the material which used to the equipment and other documents related to the GMP authentication information will be provided by us.


Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 0
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 1
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 2
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 3
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 4
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 5
Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 6Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 7Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 8

Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 9

Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 10

Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 11

Vacuum Homogeneous Emulsifying Machine Cosmetic Machine Production Line 12







Frequently Asked Questions:

Q1: I am not in China, how can I know your quality?
A: We have a factory with 20 years, we have much experience to help our customers business better.

Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production. Always final Inspection before shipment.

Q3: What can you buy from us?
A: Vacuum Homogeneous Emulsifying Machine/Homogenizing Mixer/Reverse Osmosis Water Treatment Machine/Automatic and Semi Automatic Filling Machine/Perfume Machine

Q4: Why should you buy from us not from other suppliers?
A: APVO company aims to build high quality, high efficiency, high performance equipment, stick to Science-First,People-oriented principles.We have the first-class after-sale service team and gain the customer's recognition.
