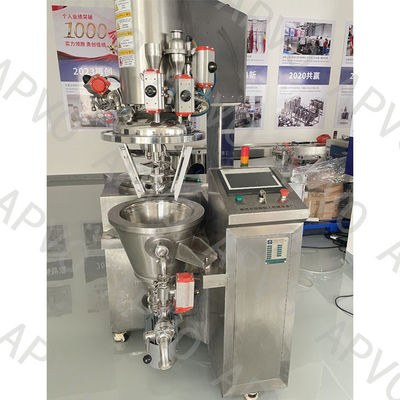

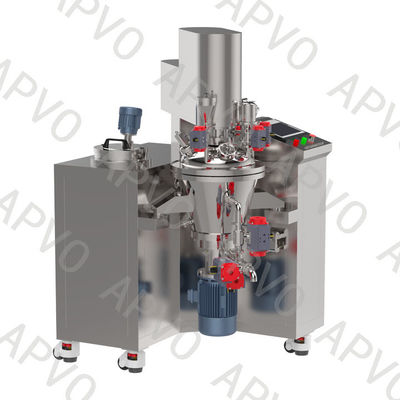

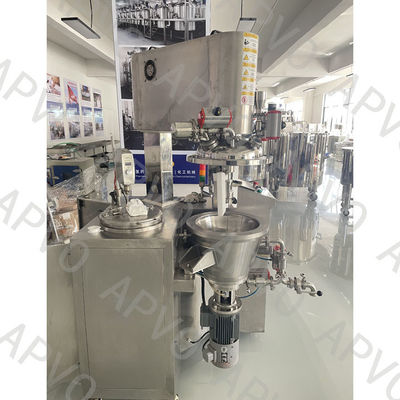

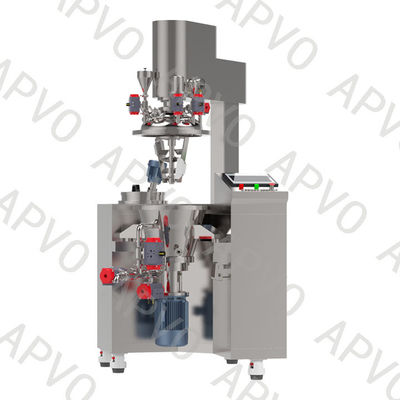

10L Laboratory High Shear Mixer Cosmetic Cream Making Machine With Lifting System

Brand Name:	APVO
Model Number:	RHJ-A10
MOQ:	1 set
Price:	USD$8500/set
Packaging Details:	Standard wooden case

Detail Information

Product Description

Detail Information

Place of Origin:

Yangzhou, China

Capacity:

Speed:

0-3000rpm

Working:

High Speed Mixer

Heating Method:

Steam/Electric Heating Method

Lift:

Hydraulic Lift

Machine Material:

Stainless Steel 304 / SUS316L

Scraper:

0-63rpm

Condition:

Warranty:

1 Year

Highlight:

10L Laboratory High Shear Mixer

10L Cosmetic Cream making machine

High Shear Mixer with Lifting System

Product Description

10L Laboratory High Shear Mixer Cosmetic Cream Homogenizing Emulsifier with Lifting System

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics and food industries

Working Principle

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

10L Laboratory High Shear Mixer Cosmetic Cream Making Machine With Lifting System 0

Specifications:

Model	Main pot	Water pot	Oil pot	Main pot wall scraping	Main pot homogenizer	Water oil pot (kw)	Hyraulic systrm	Vacuum pump power
RHJ-A5L	5L	-	-	0.18	1.1	--	0.75	0.55
RHJ-A10L	10L	8	5	0.18	1.1	0.18	0.75	0.75
RHJ-A20L	20L	18	10	0.37	1.5	0.18	0.75	0.75
RHJ-A50L	50L	40	25	0.75	4-7.5	0.75	1.5	1.5
RHJ-A100L	100L	80	50	1.5	4-7.5	1.1	1.5	1.5
RHJ-A200L	200L	170	100	2.2	7.5-11	1.5	1.5	2.2
RHJ-A300L	300L	250	150	2.2	7.5-11	1.5	1.5	2.2
RHJ-A500L	500L	420	250	4	11	2.2	1.5	2.2
RHJ-A1000L	1000L	820	500	5.5	15	2.2	2.2	3

Features:

1. SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.

2. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products.

3. Mechanical sealing, good sealing effect and long working life.

4. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.

5. Material contact parts all use SUS316L stainless steel.

6. The heating method mainly include electric or steam heating for customer's choice.

7. Advanced PLC touch screen control is optional.

8. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

FAQ:

Q1: I am not in China ,how can i know your quality?
A: We have a factory with 20 years, we have much experience to help our customers business better.

Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production. Always final Inspection before shipment.

Q3: What can you buy from us?
A: Vacuum Homogeneous Emulsifying Machine/Homogenizing Mixer/Reverse Osmosis Water Treatment Machine/Automatic and Semi Automatic Filling Machine/Perfume Machine

Q4: Why should you buy from us not from other suppliers?
A: APVO company aims to build high quality, high efficiency, high performance equipment, stick to Science-First,People-oriented principles.We have the first-class after-sale service team and gain the customer's recognition.
