400BPH Semi Automatic Horizontal Filling Machine Tube Cream Cosmetic Filler Machine

Brand Name:	APVO
Model Number:	HYGZ-500A
MOQ:	1 set
Price:	USD$989~USD$1000/set
Packaging Details:	Standard wooden case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Yangzhou, China

Certification:

Automatic Grade:

Semi-automatic

Material:

Stainless Steel

Machinery Capacity:

400BPH

Speed:

35-45bot/min

Filling Material:

Cream.etc

Single Package Size::

130X60X120 Cm

Core Components:

Motor

Single Gross Weight::

50.00 Kg

Packaging Details:

Wooden Case

Highlight:

Semi Automatic Horizontal Filling Machine

400BPH Horizontal Filling Machine

400BPH Cosmetic Filler Machine

Product Description

400BPH Semi Automatic Horizontal Filling Machine Tube Cream Cosmetic Filler Machine

Product Specifications

Attribute	Value
Automatic Grade	Semi-automatic
Material	Stainless steel
Machinery Capacity	400BPH
Speed	35-45bot/min
Filling material	Cream etc.
Package size	130×60×120 cm
Core Components	Motor
Gross weight	50.00 kg
Packaging Details	Wooden case

Product Description

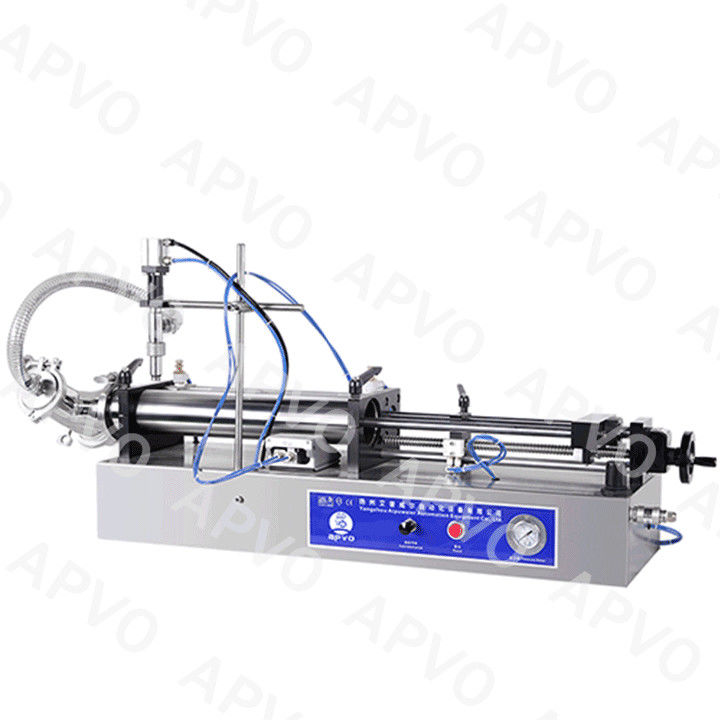

The horizontal filling machine is specially designed for easy portability. It can automatically suction material when the hopper is continuously fed.

Features manual and automatic switch function options. In automatic working condition, it will continuously fill according to the set speed. In manual status, operation is controlled by pressing the pedal. If the pedal isn't released, it will switch to automatic continuous filling.

The cylinder and tee-joint adopt hand-cuff type connections for convenient disassembly and assembly without special tools. The machine is also designed for easy cleaning.

The leakage-proof filling system drives the closure head with cylinder movement. When the cylinder moves down, valves open and filling begins. When the cylinder moves up, valves close to prevent leakage and dripping.

Model	Filling Volume	Capacity(bot/h)	Working Way	Filling Speed	≤Filling Precision	Working Pressure
GZJ-SL1	3-5000	900-1800	Electric gear pump	Adjustable	≤±1%	0.09mpa
GZJ-SL2	10-5000	2800-3800	Electric gear pump	Adjustable	≤±1%	0.09mpa
GZJ-SL3	10-5000	2800-3800	Electric gear pump	Adjustable	≤±1%	0.09mpa

Key Features

Simple structure, convenient maintenance, reliable drive with self-suction function
Uses FESTO cylinder and pneumatic components for guaranteed reliability
High measurement accuracy with no dripping
Fast filling speed with automatic uninterrupted operation
Made with imported 316L stainless steel, polished inside and out to GMP standards
Feeding style: Normal gravity type
Control mode: Full pneumatic control

Equipment Principles

Compressed air control drive makes it ideal for explosion-proof requirements and wet conditions
Mechanical positioning enables ±0.5% precision for different cream/liquid products
Lead screw and counter provide accurate filling quantity adjustment with visible display
Emergency stop switch instantly returns piston to initial position
Switchable between manual and automatic filling states
Extremely low equipment failure rate

Frequently Asked Questions

Q: Do you accept special orders?

A: Yes, we manufacture all kinds of chemical equipment according to your technical drawings.

Q: Can you provide a quotation?

A: Please provide technical details and we'll design and quote as soon as possible.

Q: Do you have this in stock?

A: All products are manufactured to order according to customer requirements.

Q: Can you create a custom design?

A: Yes, we provide complete solutions including product design.
